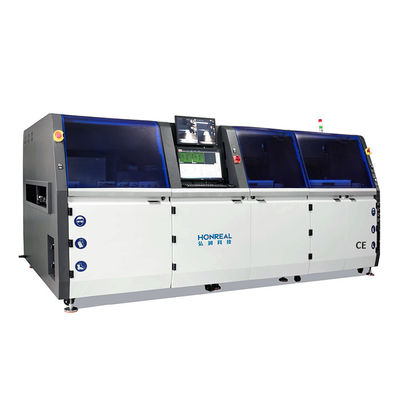

In Line One-Piece Type 2 Modules Selective Wave Soldering Machine HRX-31D Two Independent Pot Selective Solder
  • name
  • name
  • name
  • name

In Line One-Piece Type 2 Modules Selective Wave Soldering Machine HRX-31D Two Independent Pot Selective Solder

MOQ: 1set
harga: Dapat dinegosiasikan
standard packaging: Woodencase
Delivery period: 45 hari kerja
payment method: L/C, T/T, Western Union
Supply Capacity: 100Set/bulan
Informasi Rinci
Product Description
Informasi Rinci
Tempat asal
CINA
Nama merek
HONREAL
Sertifikasi
CE
Nomor model
HRX-31D
Dokumen
Honreal--Double module sele...p).pdf
Tekanan N2 yang Diperlukan:
0.4-0.6mpa
Nama Produk:
Solder gelombang selektif online HRX-31D
Kategori produk:
Mesin pemotong gelombang selektif SMT
Berat bersih:
2500kg
Sumbu Pemosisian:
X, Y, Z
Dimensi:
L4193 X W1645 X H1630mm
Ukuran operator maksimal:
L580 X W460mm
Metode pemanasan awal:
Pemanasan udara panas teratas; Pemanasan ulang inframerah gelombang pendek bawah
Menyoroti:

selective wave soldering machine HRX-31D

,

two pot selective solder machine

,

SMT wave soldering machine with warranty

Product Description
In Line One-Piece Type 2 Modules Selective Wave Soldering Machine HRX-31D Two Independent Pot Selective Solder
High Productivity In-line Selective Soldering Machine HRX-31D

Advanced selective soldering solution with high efficiency and quality performance.

Key Advantages
  • Fully functional online model with spray, preheating and welding three-stage configuration
  • Segmented independent PCB transport guide for improved production efficiency
  • High welding quality with improved pass rate
  • Comprehensive preheating system with lower IR, upper hot air, and upper IR heat compensation
  • Modular SMEMA online transportation design for flexible line formation
  • Full PC control with parameter saving capability for repeatable soldering quality
Technical Specifications
Parameter Value
Equipment type HRX-31D
Machine size L4193 x W1645 x H1630mm
Total machine power 35kw
Machine operating power 9-12kw
Power source Three-phase five-wire system 380V
Net weight 2500KG
Air source pressure requirements 0.4~0.6Mpa
Nitrogen source pressure requirements 0.4~0.6Mpa
Nitrogen source flow requirements ≥4 cubic/hour
Nitrogen source purity requirements ≥99.999%
Communication interface SMEMA
Transport Module Specifications
Feature Specification
Maximum PCB size L508 x W460mm
PCB board edge More than 5mm
Transport direction Horizontal from left to right
Headroom on PCB board 120mm
PCB board bottom clearance 60mm
Transport bearing capacity ≥10Kg
Transport height 900±30mm
Software Features
  • Independent software system with complete intellectual property rights
  • Live solder process display via camera
  • Critical parameter monitoring (temperature, speed, pressure)
  • Offline programming capability
  • Multiple programming methods (Gerber, camera scanning, PCBA scanning)
  • Automatic wave peak height correction
  • Comprehensive PCB menu storage for historical data tracking
  • LOG function with 3-level access rights
Support and Services

Our SMT Selective Wave Soldering Machine requires minimal maintenance but comes with comprehensive support:

  • Remote technical assistance via phone or email
  • On-site support services including installation, training, and maintenance
  • Dedicated technical team for peak performance optimization

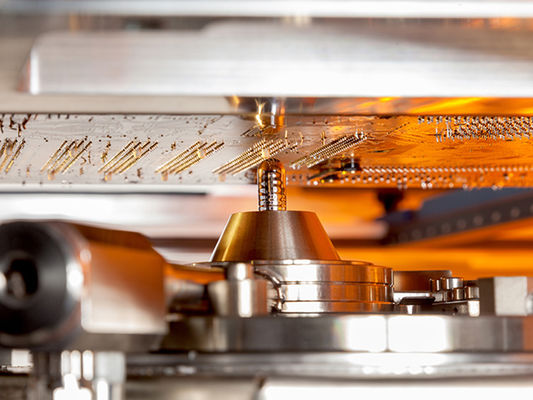

HR-400C Online Selective Wave Soldering Machine HR-400C Online Selective Wave Soldering Machine close-up
Company Information

Shenzhen Honreal Technology Co., Ltd. is a national high-tech enterprise specializing in SMT equipment research, development, production, and sales. We serve top global electronic companies with our experienced technical team and innovation capabilities.

Honorary Customers
Honorary customer logos
Contact Us
Contact information
Tags:

Mesin pemadatan papan PCB otomatis,

LED SMT Mesin Soldering Gelombang,

Mesin Pemanas Gelombang PCB SMT
